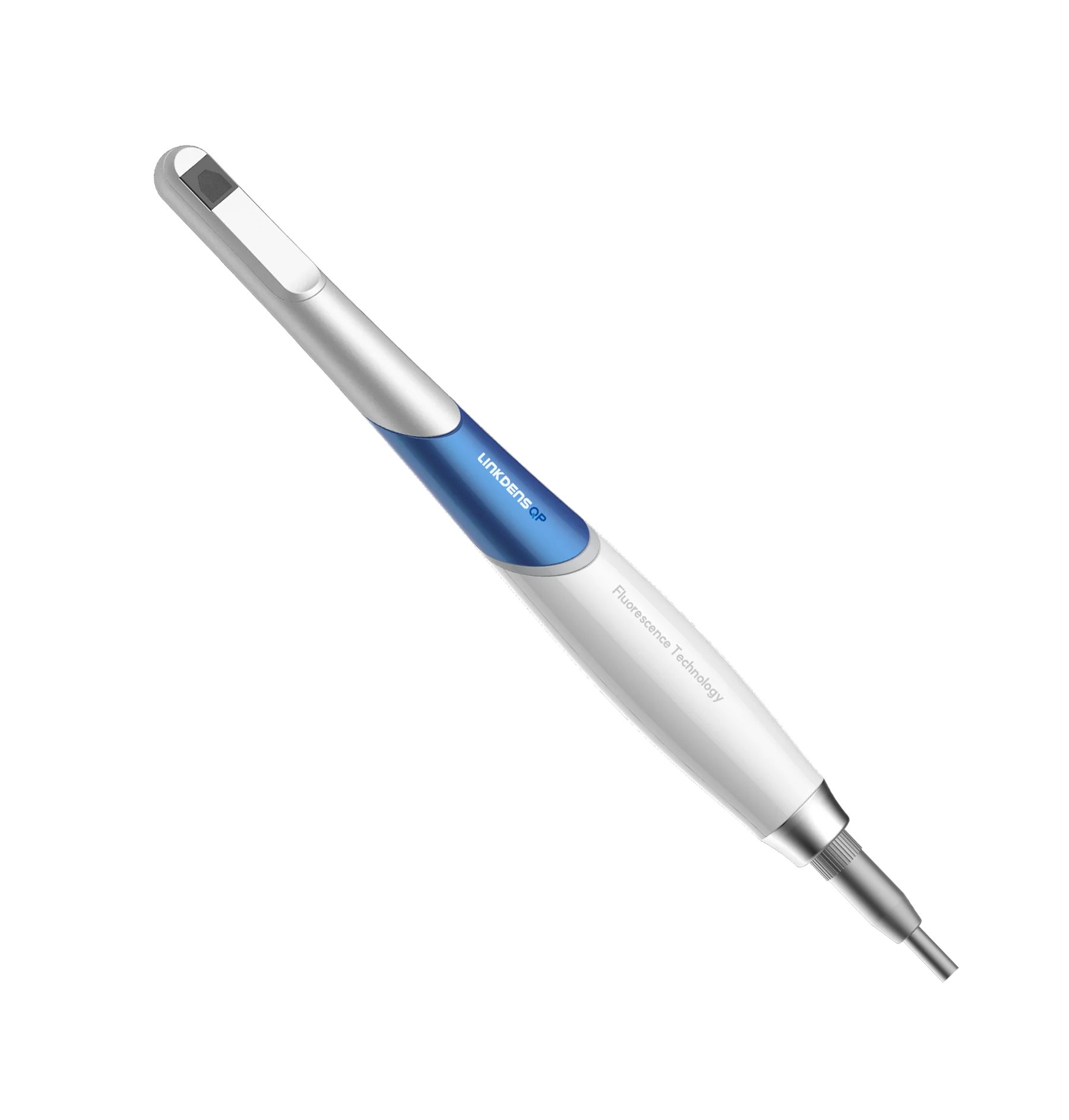

Discover Hidden Cracks with Qraypen C
By combining fluorescence imaging with conventional images, it helps clinicians detect carious lesions, plaque, cracks, and other subtle anomalies earlier than might be possible via visual inspection alone.
Support Dept
Published on October 14, 2025
Product Name & Positioning
Qraypen is a professional-grade intraoral imaging device developed by AIOBIO, offered via the shop.aiobio.com (AIOBIO BLISS Store).
On that site, Qraypen is listed as “Qraypen C,” priced at USD 3,500.
AIOBIO | BLISS Store+2
It is targeted for use by dental professionals (licensed clinicians) for enhanced diagnostic imaging in oral health care.
Regulatory Status & Market Use
-
Qraypen is an FDA-cleared product (via 510(k) clearance) as a dental intraoral camera.
-
In Korea, Qraypen C is classified as a Class II optical medical device (second-class) and designed for clinical diagnosis of dental caries, especially for individual teeth and proximal surfaces.
-
The device is suited for imaging both conventional (white-light) and fluorescence (Qray) images simultaneously.
Key Features & Capabilities
-
Dual-mode Imaging: It can capture both standard white-light images and specialized fluorescence (Qray) imaging, helpful for detecting caries, plaque, cracks, and other subtle defects that regular imaging might miss.
-
Auto focus System: The device includes an autofocus mechanism to simplify focusing in the intraoral environment.
-
Integrated LED Lighting: It features built-in LEDs (white and UV/blue) whose modes and brightness settings are adjustable.
-
Compact Form Factor & Compatibility: Designed as a hand-held device with a USB connection (USB 2.0) to connect to a PC or imaging software.AIOBIO | BLISS Store+2
-
Clinical Use & Research Backing: The product documentation mentions that more than 250 publications utilize its fluorescence imaging technology.
-
Ease of Operation: The site describes a user workflow: set up via USB, launch imaging software, choose LED mode, position on the tooth, capture the image—all with relatively simple controls.
Technical Specifications (Selected Highlights)
| Specification | Details |
|---|---|
| Image Sensor & Resolution | HD 720p CMOS / MOS sensor (1280 × 720) +2 |
| LED Configuration | 7 white LEDs + 2 UV/blue LEDs |
| Focus Range | ~5 mm to 45 mm intraorally (±10 %) |
| Interface | USB 2.0 |
| Power Supply | AC/DC adapter (5 V, ~0.5 A) |
| LED Operating Cycle | The LED is rated for 50 s on / 1 min off cycles to avoid overheating. |
Clinical Applications & Benefits
-
Early Detection / Preventive Diagnostics: By combining fluorescence imaging with conventional images, it helps clinicians detect carious lesions, plaque, cracks, and other subtle anomalies earlier than might be possible via visual inspection alone. Wiley Online Library+3아이오바이오+3
-
Patient Communication & Education: The visual output can help in explaining diagnoses to patients, improving transparency and engagement.
-
Integration with Digital Dentistry Workflows: It can be used alongside electronic charting systems and insurance/clinical software (noted in Korean documentation).
-
Minimally Invasive Monitoring: With repeated imaging over time, trends in tooth health can be monitored non-destructively.
